Samsung IE025A 2.5mm 60Hz LED IP20 Cabinet Pixel Pitch (96 x 216)

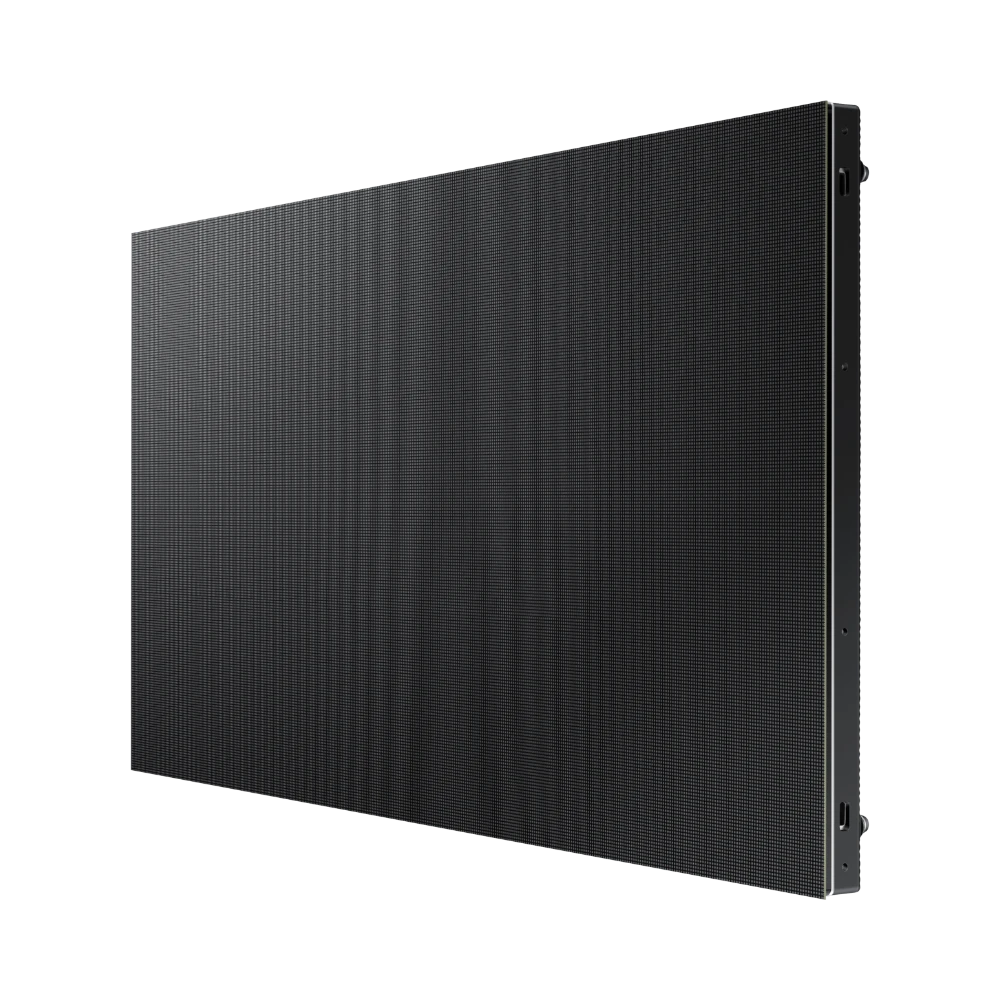

The Samsung IE025A is an indoor LED display cabinet designed for spaces that need crisp, detailed visuals without the bulk of a traditional screen. Each module uses a 2.5 mm pixel pitch and a native resolution of 384 × 216, so images and text stay clear even when viewers stand close. The cabinet operates at a 60 Hz video rate and drives the LEDs with a 3840 Hz refresh, helping motion look smooth while reducing visible flicker in camera recordings.

Brightness reaches 500 cd/m² and the 2500:1 contrast ratio deepens blacks for content that pops in retail showrooms, control rooms, or corporate lobbies. Samsung’s LED HDR technology combines Dynamic Peaking, Inverse Tone Mapping, and Color Mapping to refine highlights and shadow detail, giving presentations and promotional loops a more lifelike appearance. A viewing angle of 150 degrees in both directions keeps colors consistent across wide seating areas.

The cabinet carries an IP20 rating for controlled indoor environments and supports portrait, landscape, or gently curved installations, making it adaptable to creative video walls, pillar wraps, and narrow columns. Integration with Samsung’s MagicINFO platform simplifies content scheduling and remote management, so a single operator can update messaging across an entire network of cabinets from one dashboard.

Retailers can stack multiple IE025A units for a seamless storefront wall that attracts shoppers with lively promotions. Corporations can build a clean reception display that welcomes visitors and streams real-time data. Event venues can configure a curved backdrop that frames presenters without distracting bezel lines. Whatever the setting, the modular form factor lets technicians transport, mount, and service individual cabinets quickly, keeping downtime to a minimum.

• 2.5 mm pixel pitch for close-range viewing
• 384 × 216 resolution per cabinet
• 500 cd/m² brightness and 2500:1 contrast ratio
• 3840 Hz refresh for smooth, flicker-reduced motion
• IP20 rating for indoor installations
• HDR support through LED HDR with Dynamic Peaking and Inverse Tone Mapping
• Portrait, landscape, and curved configuration options
• 347 W/m² maximum power consumption
• Compatible with Samsung MagicINFO content management
